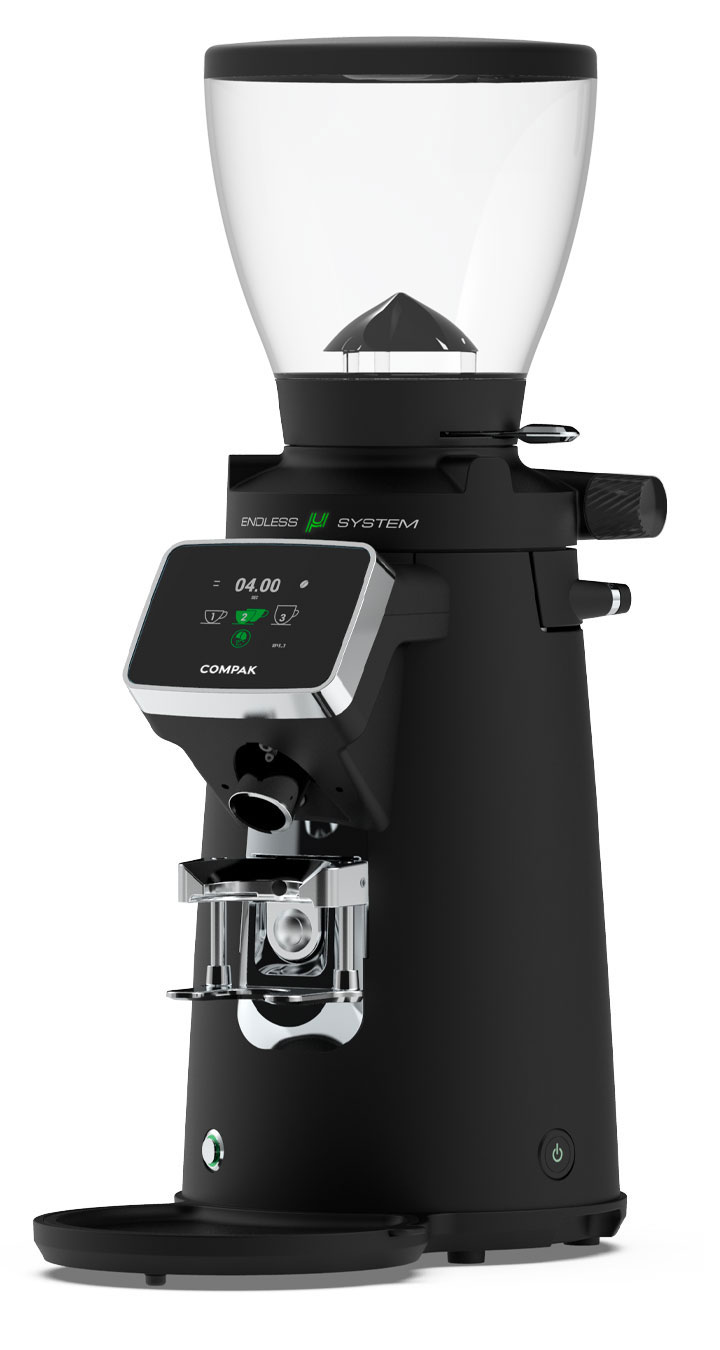

F8 OD
Micrometric Precision. Epic Extractions
Lock Load System: Instant access to the grinding chamber for cleaning or burr replacement. Micrometric adjustment with worm gear system.
Burrs made from long-lasting tempered steel K110. Durability: 800 kg*.
Optional Red Speed burrs available.
Key specifications
| Motor output | 630 | W |
| Revolutions per minute | 1.310 | rpm |
| Ø Burrs | 83 | mm |
| Espresso point production | 4,2 | g/s |
| Hopper capacity | 1.250 | g |
| Height x width x depth | 617 x 230 x 385 | mm |
| Net weight | 15,36 | Kg |
Technical data files
Key features
Micrometric adjustment with worm gear system
Standar Lock Load System (LLS)
Instant access to the grinding chamber
Coffee outlet enlightened with leds
Motor with fan and optional back fan
Adjustable fork in height and depth
Front-mounted refill button
Electronic features
2.8” TFT touchscreen
Multilanguage display
Portafilter detector (optional)
Menu access protection with password
Dose counter, both absolute and relative
Wear and changing burrs alarm
Screensaver
Wireless firmware update
Features
Motor 630 W to 1.310 rpm
Powerful motor that allows you to work continuously in situations of high demand, maintaining all the properties of the coffee.
Lock & Load System
Instant access to the grinding chamber by simply moving two levers. Cleaning or changing the burrs without losing the adjustment.
Flat 83 mm burrs
Made of long-lasting tempered steel K110.
Ensures accurate particle size for Espresso and spectacular productivity.
Durability: 800 Kg.
2.8” High Tech touchscreen
Multilingual, with burr change alarm, screensaver, and total and partial dose counters. Access protection with a password.
2 front LEDs
Illuminate the portafilter and flash once the dose has been dispensed
Front-mounted refill button
Adjustable portafilter support
Height and depth.
Perfect fit for the most common portafilter sizes, which also allows for hands-free usage.
Options
Burrs Red Speed
Low coefficient of friction and specially hardened material. Reduces heat generation.
Ø 83 mm: 5.000 Kg
Built-in tamper
Ø 58/53 portafilters
Back leds and fan
Leds to illuminate the rear image and additional fan to maintain a cool flow of air at all times.
Slim base
Aluminum hopper base
Capacity: 1.250 g.
Hopper 1.250 g
Smoked hopper 1.250 g
Hopper 700 g
Hopper 400 g
110 V version
Portafilter detector
Detection of the double dose through the sensor ring placed on the portafilter.
Customizations
Grinder body color
Check our conditions.
Mat case
Polished aluminium case
Customizable hopper
It can be personalized with sheets in the front and back spaces.
Capacity: 1.800 g.
Vinyl customizable hopper
Allows for all kinds of images to be added for a 360° view.
Capacity: 1.800 g.
Back logo customization
It can be adapted to any image.
F Series
Micrometric Precision
Epic Extractions
Endless System
Micrometric adjustment with maximum precision
When you turn the grind regulator knob, the display will show the scale measured in microns until you reach the desired grind level.
Then, you will have the option to save the recipe.
2.8” High Tech
Touchscreen
The interface on our 2.8" High Tech touchscreen allows you to control all the variables for a perfect grinding.
The F Series grinders determine the grind with micrometric precision and allow you to save the selected recipes.
Key features
Absolute and relative dose statistics are displayed and can be reset.
Burrs wear control with a configurable alarm for monitoring.
Option to activate a screensaver and configure its activation time.
Wireless firmware update of the grinder.
Recipes
The green number above the graduated scale indicates the distance in micrometers between the upper and lower burrs. The saved recipe is displayed in orange at the bottom of the screen.
Once the recipe aligns with the central triangle, the lower triangle changes to green.
Only one recipe called ESPRESSO can be saved. The button and text change to orange.
Compatible hoppers
Lock & Load System
Instant access to the grinding chamber for quick, easy, and hassle-free cleaning or burr replacement.
Optimal distribution of ground coffee
The vertical and horizontal movement of the portafilter fork allows it to be adjusted to all portafilters on the market.
Burrs features
Red Speed burrs come standard in the F10 Master models and are optional for the F8 OD models
Certified for
food-grade use
Increased
durability
Espresso-specific
geometry
Customize your grinder
A touch of color in ever y grind.
Choose your preferred shade for your grinders body from the entire RAL range.
Technical data files
Certifications
